TestBot\’s suite of electronic accessories, including the Decade Resistance Box (DRB) and I/O Module, integrates with TestBot, enhancing its capabilities for circuit analysis, signal control, and system validation. Whether you’re debugging firmware, calibrating sensors, or verifying embedded interfaces, these accessories deliver the reliability and efficiency you need to accelerate your workflows.

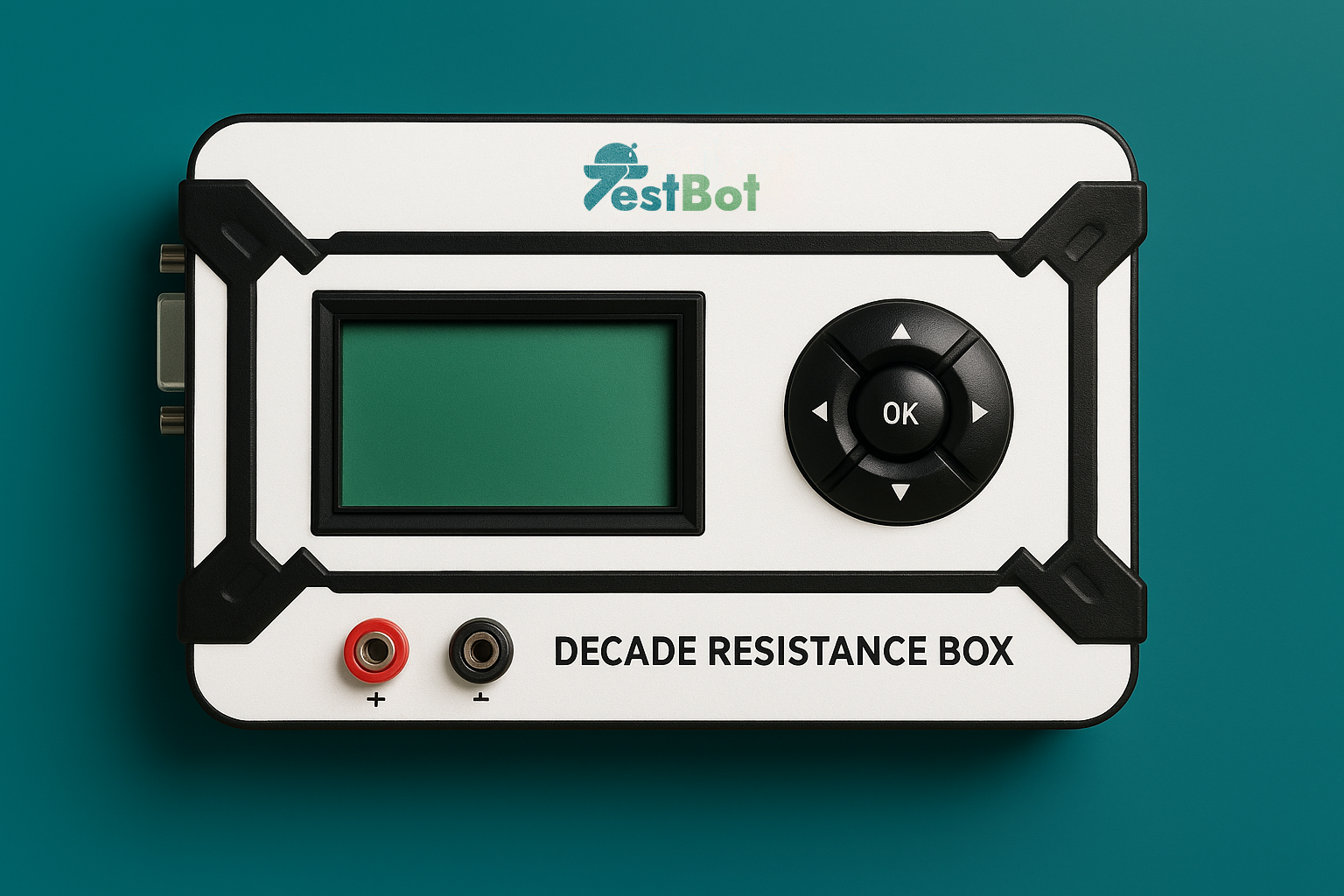

The DRB is a high-precision programmable resistance module that brings unparalleled control to embedded testing. Powered by the NXP LPC55S16 microcontroller, this compact device enables dynamic resistance adjustments, making it ideal for circuit analysis, sensor calibration, and electronic component validation.
Adjust from 0.1Ω to 99,999Ω with exceptional accuracy, supporting diverse testing scenarios from low-ohm circuits to high-resistance calibrations.
Provides real-time feedback on resistance values, ensuring clarity during manual or automated operations.
Allows intuitive manual adjustments, perfect for rapid prototyping or on-the-spot tweaks.
Dynamically changes resistance values during test sequences, eliminating manual intervention.
The DRB enhances TestBot’s automation capabilities through a seamless three-step process
Define target resistance values and test sequences in TestBot’s user-friendly interface, using graphical, Python, or Java-based programming.
The DRB adjusts resistance in real time to match test requirements, ensuring precision in complex scenarios like stress testing or diagnostics.
The DRB confirms adjustments, and TestBot logs results, generating detailed reports for analysis or compliance.

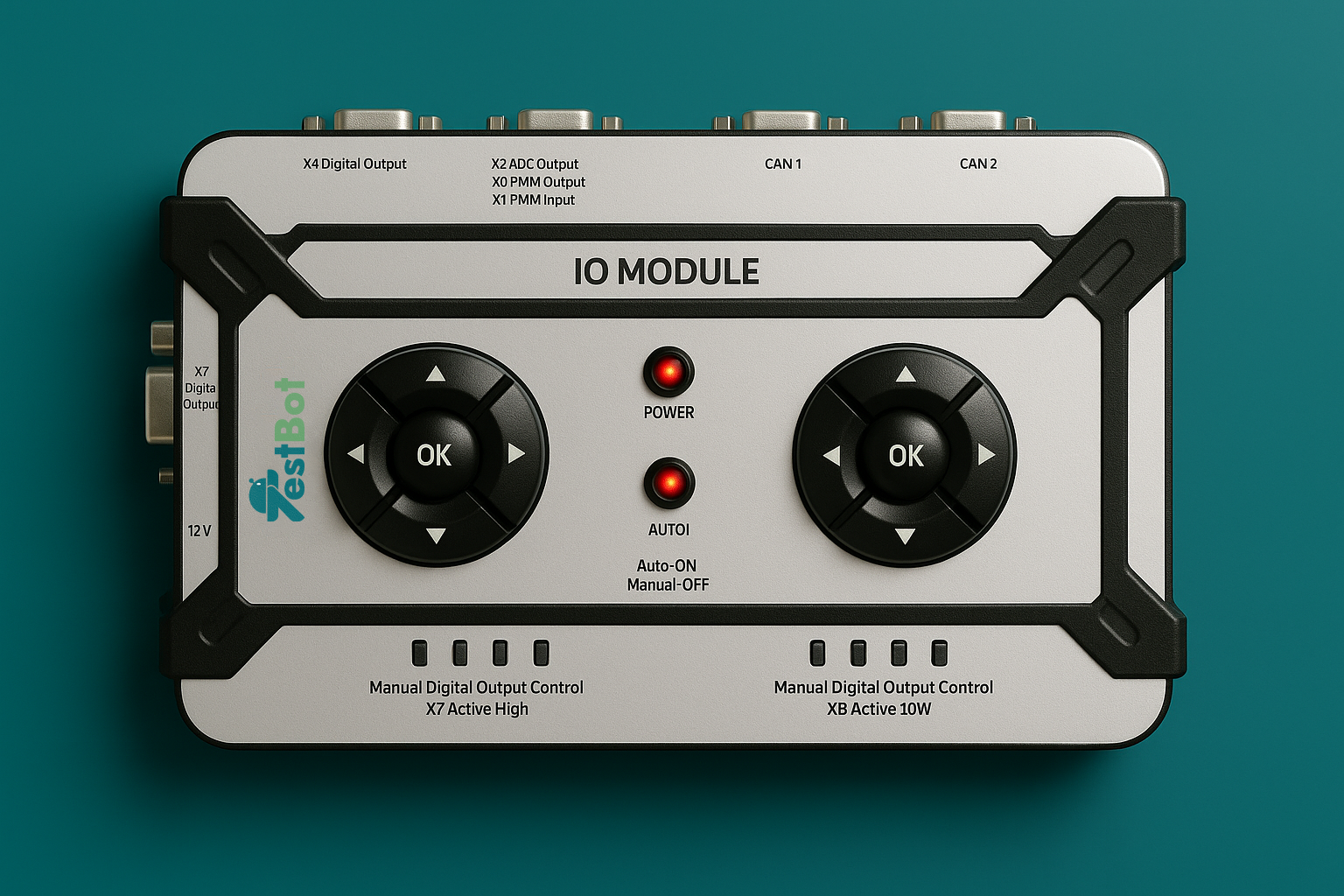

The I/O Module is a smart interface that bridges TestBot with external embedded systems, offering precise control over digital, analog, and PWM signals. This versatile module is a game-changer for testing embedded interfaces and ensuring seamless hardware-software interactions.
Manages digital, analog, and PWM signals in a single, compact unit, catering to diverse testing needs.
Dynamically interprets and controls CAN signals, making it ideal for automotive and industrial applications.
Integrates effortlessly with TestBot’s automation framework for end-to-end testing.
Delivers instant status updates, enabling rapid validation and debugging.
The IO Modules enhances TestBot’s automation capabilities through a seamless three-step process
Import CAN DBC files and assign signals within TestBot’s interface, simplifying configuration.
TestBot issues CAN write commands to adjust I/O states, enabling precise signal manipulation.
The I/O Module monitors output changes, with TestBot logging results for verification and reporting.
