Arithmetic Agent

Purpose

Arithmetic Agent is used to perform basic arithmetic operations on numeric values during test execution, such as addition, subtraction, multiplication, and division, to support data calculation and validation logic.

Arithmetic Agent Blocks

1. Add

Adds two numeric values.

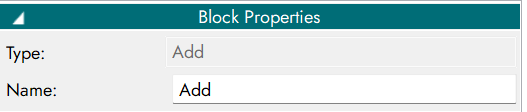

Properties

Inputs

Input Name	Description
Value1	First numeric value
Value2	Second numeric value

Add - input parameter.

Outputs

Output Code	Description
0	Addition completed
1	Invalid input values
2	Arithmetic error

Add - output parameter.

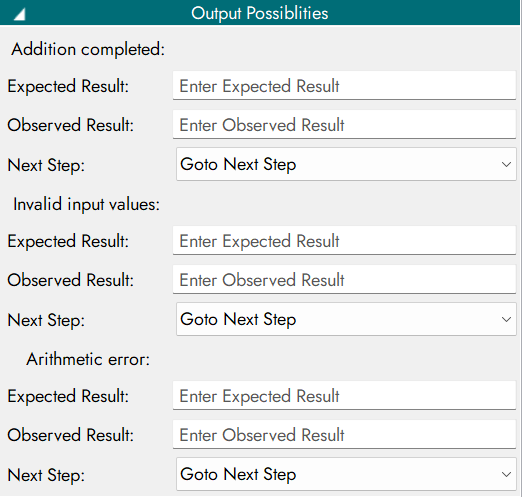

Output Possibilities Configuration

2. Subtract

Subtracts one numeric value from another.

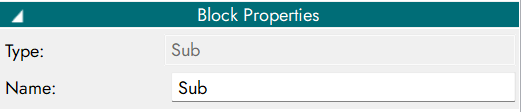

Properties

Inputs

Input Name	Description
Value1	Value from which subtraction is performed
Value2	Value to subtract

Subtract - input parameter.

Outputs

Subtract - output parameter.

Output Possibilities Configuration

3. Multiply

Multiplies two numeric values.

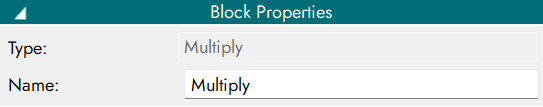

Properties

Inputs

Input Name	Description
Value1	First numeric value
Value2	Second numeric value

Multiply - input parameter.

Outputs

Output Code	Description
0	Multiplication completed
1	Invalid input values
-1	Arithmetic error

Multiply - output parameter.

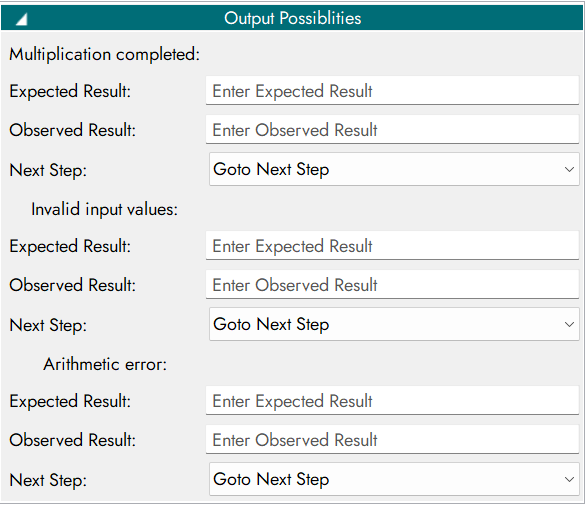

Output Possibilities Configuration

4. Divide

Divides two numeric values.

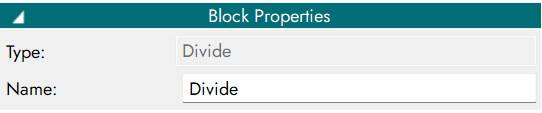

Properties

Inputs

Input Name	Description
Value1	Dividend value
Value2	Divisor value

Divide - input parameter.

Outputs

Output Code	Description
0	Division successful
1	Invalid input values
-1	Division by zero

Divide - output parameter.

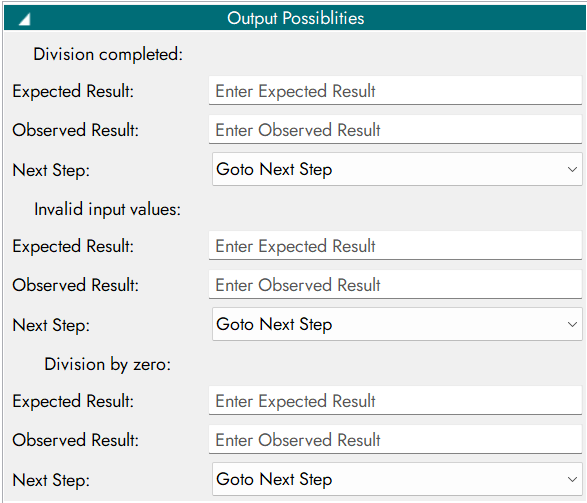

Output Possibilities Configuration
