Data Agent

Purpose

The Data Agent manages reading and writing of input/output values stored in memory during test execution. It is primarily used for data-driven testing, enabling separation of test logic and test data.

Data Agent Blocks

1. Read Parameter

Reads a parameter value from the ETD file using the specified Data ID.

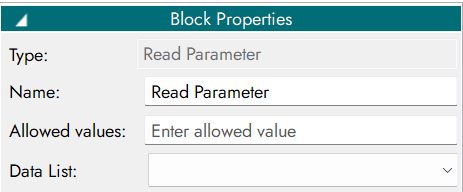

Properties

Inputs

Parameter Name	Description
Data ID	Identifier of the parameter to be read from the ETD file

Outputs

Output Code	Description
0	Read data successfully
1	Unable to read data

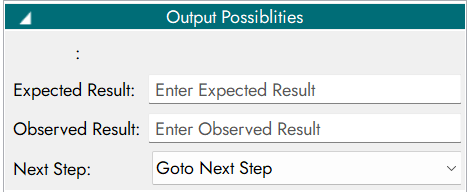

Output Possibilities Configuration

2. Read Real Data

Reads a real (floating-point) value associated with the specified Data ID.

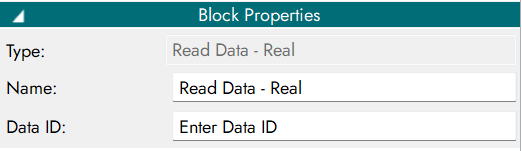

Properties

Inputs

Parameter Name	Description
Data ID	Identifier of the real value to be read

Outputs

Output Code	Description
0	Read data
1	Unable to read data

Output Possibilities Configuration

3. Read Boolean Data

Reads a Boolean value associated with the specified Data ID.

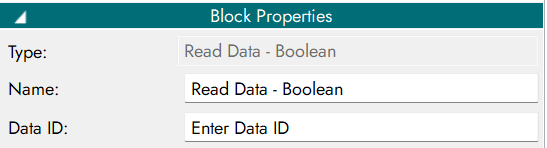

Properties

Inputs

Parameter Name	Description
Data ID	Identifier of the Boolean value to be read

Outputs

Output Code	Description
0	Read data
1	Unable to read data

Output Possibilities Configuration

4. Write Real Data

Writes a real (floating-point) value to the specified Data ID in memory.

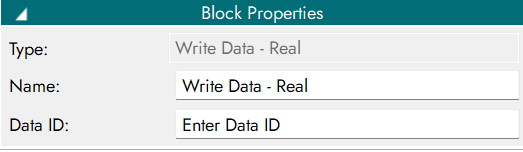

Properties

Inputs

Parameter Name	Description
Data ID	Identifier to which the real value is written
Input Value	Real (floating-point) value to be written

Outputs

Output Code	Description
0	Data written
-1	Write operation failed

Output Possibilities Configuration

5. Write Boolean Data

Writes a Boolean value to the specified Data ID in memory.

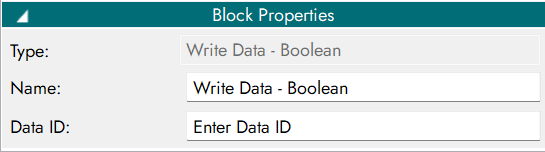

Properties

Inputs

Parameter Name	Description
Data ID	Identifier to which the boolean value is written
Input Value	Boolean value to be written

Outputs

Output Code	Description
0	Data written
1	Write operation failed

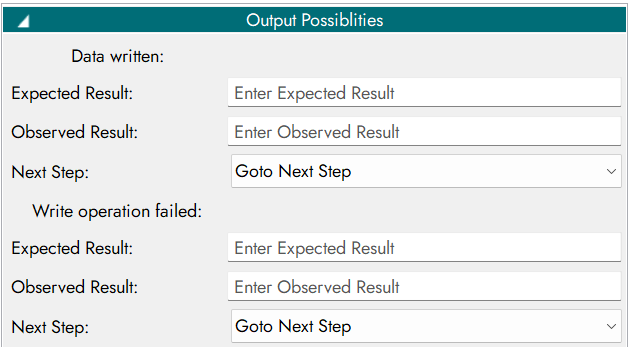

Output Possibilities Configuration

6. Read Constant

Generates a fixed constant value that can be reused in subsequent test steps.

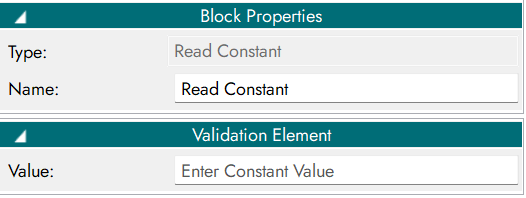

Properties

Inputs

Parameter Name	Description
Constant Value	Fixed value generated by the block

Outputs

Output Code	Description
0	Read data
1	Unable to read data
