Modbus Server Agent
Purpose
Controls Modbus server operations such as starting/stopping the server and writing values to Modbus registers during test execution.
Modbus Server Agent Blocks
1. Start Server
Starts the Modbus server.
Properties
Outputs
Start Server - output parameter.

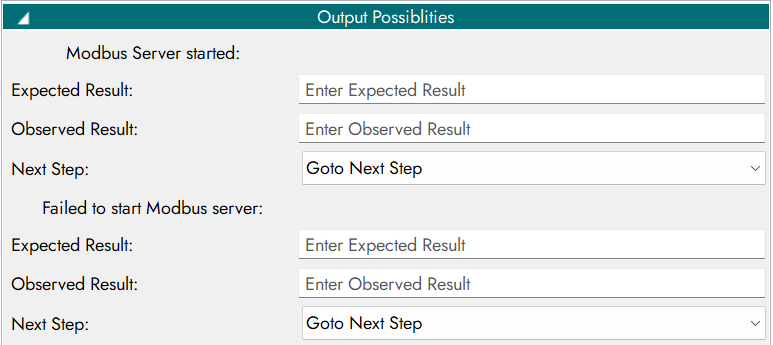

Output Possibilities Configuration
2. Stop Server
Stops the Modbus server.
Properties
Outputs
Output Code |
Description |
|---|---|
0 |
Modbus server stopped |
1 |
Failed to stop Modbus server |
Stop Server - output parameter.

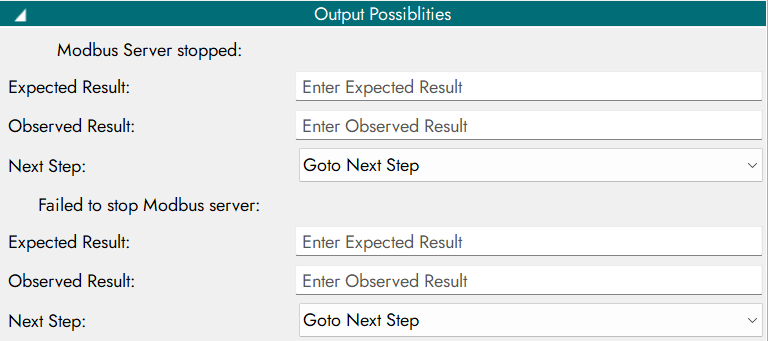

Output Possibilities Configuration
3. Set Register Value
Writes a value to a specified Modbus register.

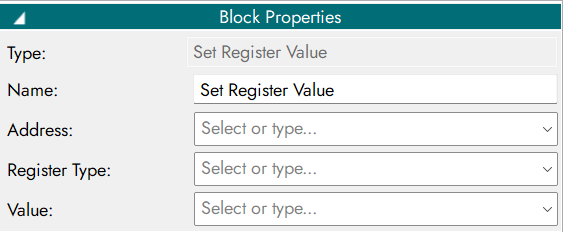

Properties
Inputs
Parameter Name |
Description |
|---|---|
Register |
Modbus register identifier |
Value |
Value to write |
Set Register Value - input parameter.
Outputs
Output Code |
Description |
|---|---|
0 |
Register value written |
1 |
Failed to write register |
Set Register Value - output parameter.
